Wire (3-Wire) Analog Input Devices – Advanced

Connecting standard 3-wire analog input devices is usually straight-forward. They connect directly to the terminal blocks next to the IO rack in the control panel. These terminals contains the positive DC voltage reference wire connection on the left, and the negative DC voltage reference wire connection on the right. The PointIO rack contains the input modules used to send device status to the PLC, where the input signal is wired.

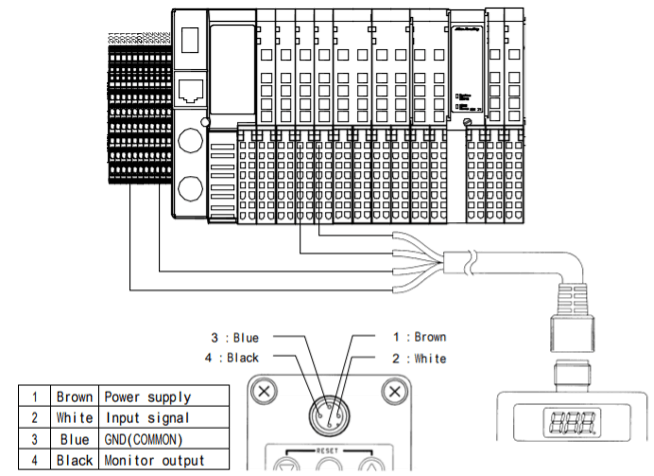

Below is a typical pressure regulator sensor field device wiring diagram.  There are a wide variety of field sensors available on the market.  Wiring is usually/can be polarity sensitive.  Refer to the manufacturer’s installation instructions for specific wiring diagrams per your application.  Use twisted-shielded cabling whenever possible, grounding only one end of the shield to earth ground.

*Note – Inputs 0 – 3 can be used for analog inputs. Be sure to scale the analog input correctly in the programming according to the linear scale as shown above to the right.  In this case, 0VDC (0 digital) would equal 0 PSI and 10 vdc (10000 digital) would equal 130.5 PSI in the PLC logic.
