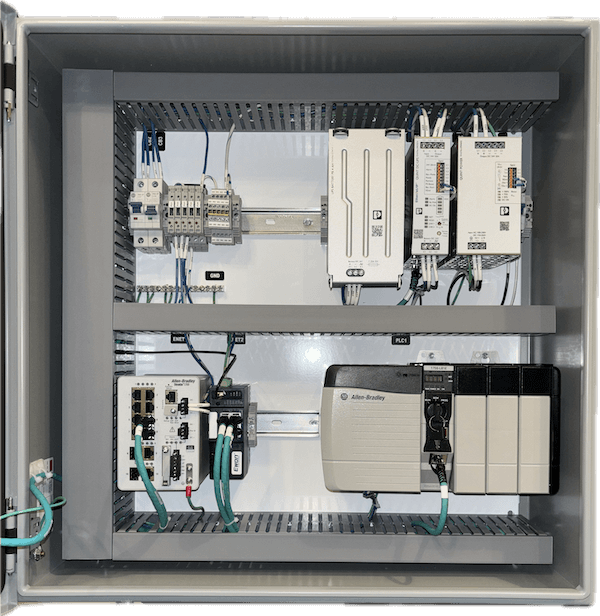

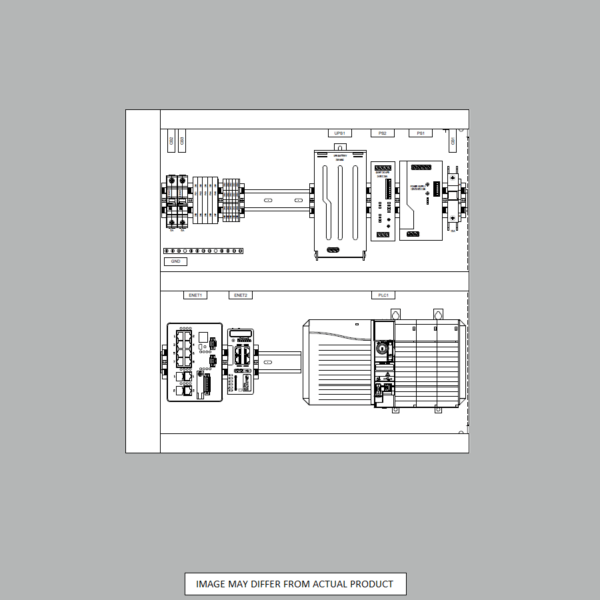

ControlLogix Control Panel with UPS Subpanel

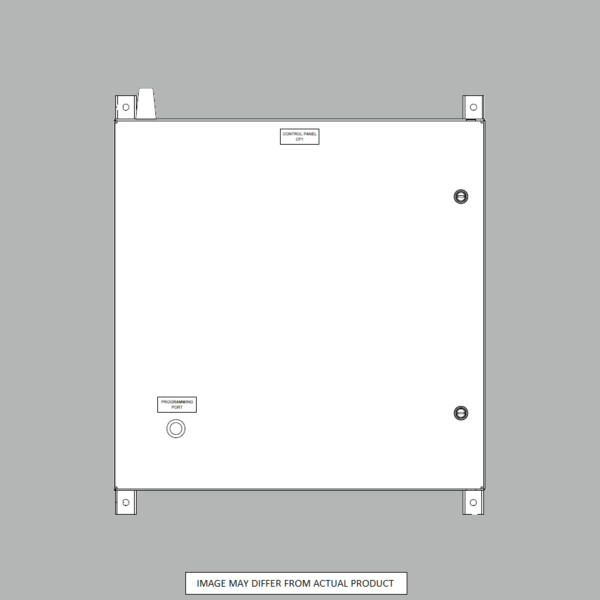

ControlLogix Control Panel with UPS Enclosure

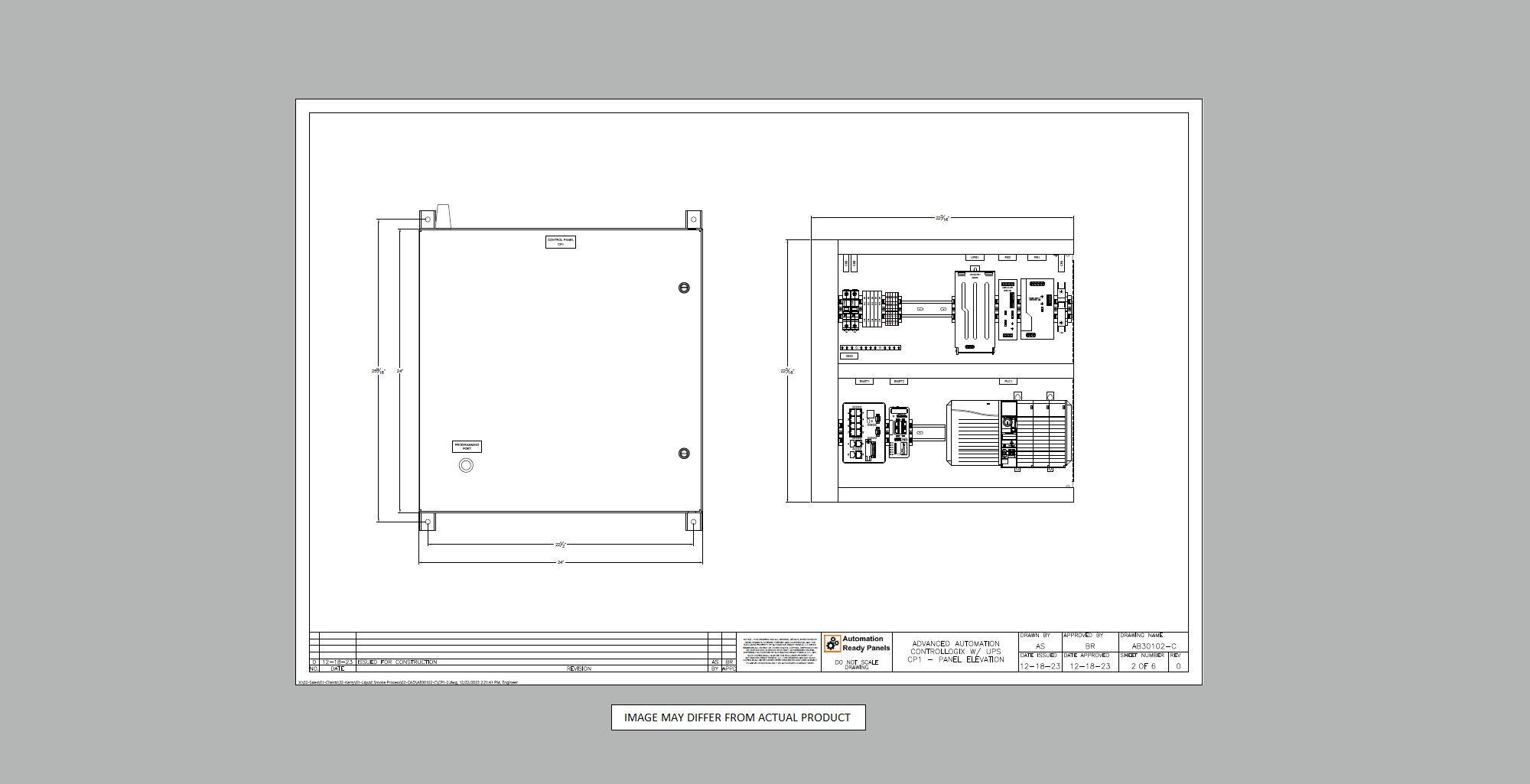

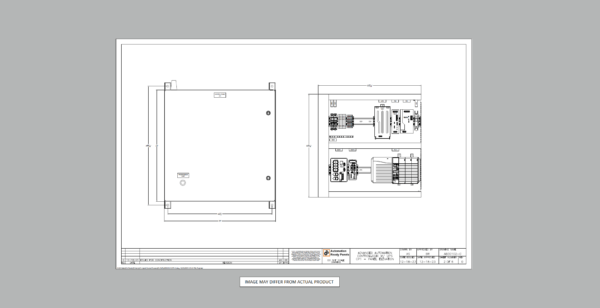

ControlLogix Control Panel with UPS Layout
CompactLogix 5380 Motor Programming
CompactLogix 5380 Safety PLC Programming
CompactLogix 5380 HMI Displays
Allen Bradley Controllogix Panel with UPS

Small Process Automation: ControlLogix 5580, UPS Battery Backup, Cellular Modem

$16,999.00



  • 15 Amp Incoming Circuit Breaker
  • Allen-Bradley and Hoffman Components used whenever possible
  • ControlLogix 5580 PLC w/ 3MB memory
  • Phoenix Contact 20 Amp DC Power Supply for PLC Panel and two remote Panels/Devices
  • 10 Port Managed Network Switch, Full Software, 8 Ports Copper, 2 Ports Combo Fiber/Copper
  • EWON Cellular Modem with Antenna, AT&T Prepaid Account set up and activation included
  • Phoenix Contact UPS with Battery Backup for PLC during power outages
  • Enclosure Programming Port
  • Mild Steel ANSI Grey Type 4 Painted Panel Enclosure with Mounting Foot Kit. PANEL SIZE WILL VARY (Min. 24″x24″x8″)
  • Pre-programmed with On/Off Delay On Delay Off/Scaling AOIs (each input), Manual Motor Control, VFD Status, State Machine and Sequencers, Comms, OEE, Recipes, etc
  • Includes Electrical Schematic Drawings and User/Programming Manual
  • 1 Additional Hour of Free Custom Application Programming, Drawings Updates, and/or Remote Installation Support
  • Standard Lead Time: 7-10 Days (*subject to Terms and Conditions)
  • Need a different version of this standard design? Please just Contact Us and we will post it for standard purchase.
  • For Indoor Use ONLY. Keep out of direct sunlight
SKU: AB40011 Categories: , , , Tag:
Must be the PLC Processor
Ethernet Cable(s) not included for this module
Ethernet Cable(s) not included for this module
Ethernet Cable(s) not included for this module
Ethernet Cable(s) not included for this module
Ethernet Cable(s) not included for this module
Ethernet Cable(s) not included for this module
Product total
Options total
Grand total
Request Custom Changes

Product Categories

Description

Automation Ready Panels introduces the next level of the ControlLogix 5580 Panel Design Customer Experience:  Hardware Design, Software Design, and Engineering Service for the price of our Competitions Hardware Build-to-Print.

This Process Automation ControlLogix 5580 PLC Panel is based around a state of the art PLC and a complement of 1756 IO communications modules.  Inputs and Outputs can be easily expanded with more network-based IO.

With this control panel, the ControlLogix 5580 PLC can be programmed flexibly with many logic options.  Automation Ready Panels pre-programs this system with Discrete Input Delay (On/Off Timers) programming blocks to keep inputs from flutter or can be used for delay timers on levels, photoeyes, or other sensors. Analog Scaling programming blocks are used for analog inputs/outputs.  Motor, VFD, and devices programming blocks are included with feature rich functionality (Rockwell Machine Builder Library V12 and Power Device Library V2.2).  Statistical Analysis programming blocks can be used for average and standard deviation calcs for a sample size.  VFDs can be networked over Ethernet/IP to reduce IO requirements and bring in smart data from the device.  Other communications types to Micro800 PLCs, CompactLogix PLCs, Micrologix PLCs, Fanuc Robots, and SMC valve banks are included.  A full state machine, shell sequencer programs, and a safety program have been added to reduce final integration time.  If desired, one of Automation Ready Panels controls engineers can program up to one hour of free programming (**) to finish off your sequencer, meeting your applications needs.  This means that a fully functional controls system can be delivered and ready to install, wire sensors and motors, power up, and the system is up and running.

(**) The free included hour of programming can also be used either partially or fully for CAD drawings updates and/or remote installation phone support.
(***) Design according to UL508a

Need a different customization to this design? Please use the Contact Us webpage to let us know how we can help.
